Tripp Lite

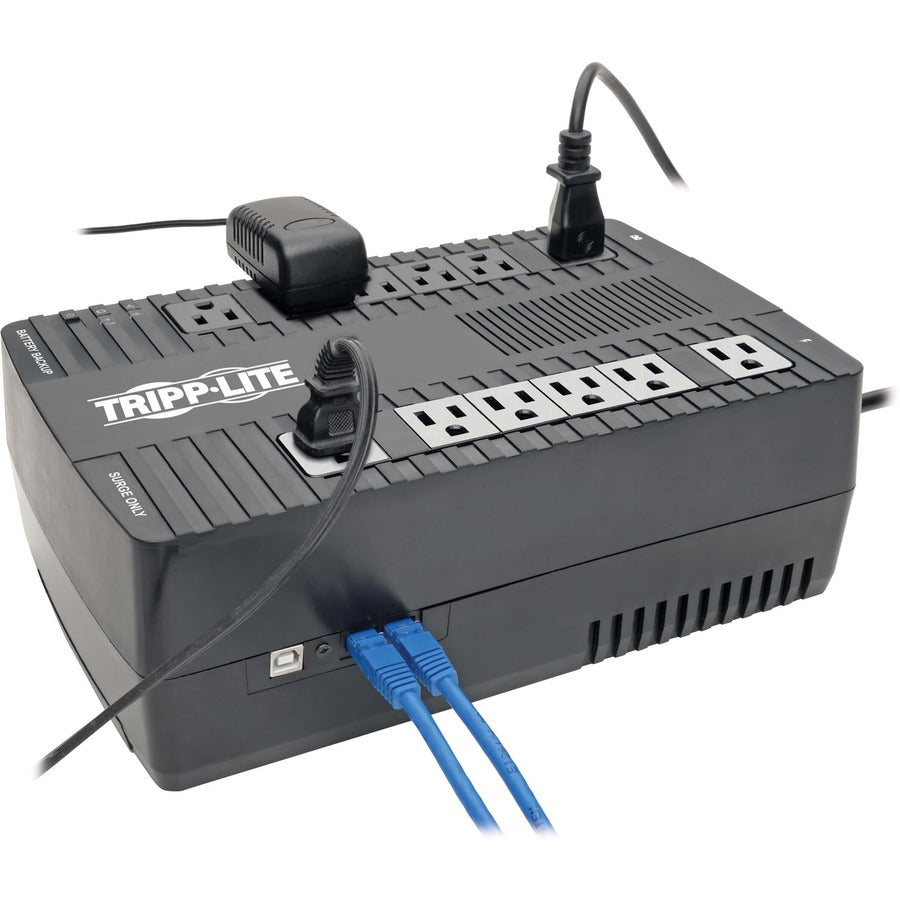

Tripp Lite UPS 900VA 480W Desktop Battery Back Up AVR Compact 120V USB RJ11
- Item #
- TRP AVR900U
- Mfr. part #
- AVR900U
- UPC
- 013297543341
Account pricing
This item is priced per account. Email or call and we'll send your price.
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
General Information
| Manufacturer | Eaton Corporation |
|---|---|
| Manufacturer Part Number | AVR900U |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Name | AVR 900VA Desktop UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
|---|---|
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
Power Description
| Load Capacity (VA) | 900 VA |
|---|---|
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
Management
| Alarm |
|
|---|
Controls/Indicators
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
|---|
Interfaces/Ports
| USB | Yes |
|---|---|
| USB (HID Compliant) Port | Yes |
Battery Information
| DC System Voltage | 12 V DC |
|---|---|
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
Environmental Conditions
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics
| Height | 4.14" |
|---|---|
| Width | 7.48" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 16.50 lb |
Miscellaneous
| Package Contents |
|
|---|---|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 3 Year |
|---|---|
| Additional Warranty Information | 2 year warranty $100,000 Connected equipment guarantee |
